2011 Kawasaki Mule 600

2011 Kawasaki Mule 600 - Specifications
American MSRP $6,699 USD
Canadian MSRP $NA CDN
Engine: Four-stroke, air-cooled single
Displacement: 401cc
Bore x Stroke: 82 x 76mm
Compression ratio: 8.3: 1
Carburetor: Nikki 6C1026
Air filter: Snorkel-type with two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Magneto and transistor
Electrical: 12VDC, 14 amp-hour battery, alternator
Transmission: Kawasaki Automatic Power-Drive System (KAPS), with reverse
Final drive: Shaft, dual-mode rear differential

2011 Kawasaki Vulcan 1700 Nomad

2011 Kawasaki Vulcan 1700 Nomad - USA Specifications
MSRP: $15,499 USD
Engine: Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin
Displacement: 1,700cc / 103.7ci
Bore x Stroke: 102 x 104mm
Compression ratio: 9.5:1
Maximum Torque: 108 lb-ft @ 2,750rpm
Cooling System: Liquid, plus cooling fins
Ignition: TCBI with Digital Advance
Induction: Digital fuel injection, dual 42mm throttle bodies
Final Drive: Belt
Frame Type: Steel, double-cradle with box-section single-tube backbone
Rake/Trail: 30° / 7.0 in.
Front Suspension / wheel travel: 43mm hydraulic fork / 5.5 in.
Rear Suspension / wheel travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.

2012 Kawasaki KLR650


2012 Kawasaki KLR650 - USA Specifications/Technical Details
US MSRP Price: $6,299 USD

Engine Four-stroke, DOHC, four-valve single

Displacement 651cc

Bore x Stroke 100.0 x 83.0mm

Compression ratio 9.8:1

Cooling System Liquid

Carburetion Keihin CVK40

Ignition Electric CDI

Transmission Five-speed

Final drive Chain

2011 Kawasaki Mule 610 4x4 XC Camo

2011 Kawasaki Mule 610 4x4 XC Camo - Specifications
American MSRP $8,299 USD
Canadian MSRP $NA CDN

Engine: Four-stroke, fan-cooled single, OHV
Displacement: 401cc
Bore x Stroke: 82 x 76mm
Compression ratio: 8.6: 1
Carburetor: Nikki 6C1026
Air filter: Snorkel-type with two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Magneto and transistor
Electrical: 12V DC, 14 amp-hour battery, alternator
Transmission: Continuously variable transmission with high and low range, plus reverse

2011 Kawasaki Mule 610 4x4 XC

2011 Kawasaki Mule 610 4x4 XC - Specifications
American MSRP $7,899 USD
Canadian MSRP $9,949 CDN

Engine: Four-stroke, fan-cooled single, OHV
Displacement: 401cc
Bore x Stroke: 82 x 76mm
Compression ratio: 8.6: 1
Carburetor: Nikki 6C1026
Air filter: Snorkel-type with two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Magneto and transistor
Electrical: 12V DC, 14 amp-hour battery, alternator
Transmission: Continuously variable transmission with high and low range, plus reverse
Final drive: Shaft-driven selectable four-wheel drive, dual-mode rear differential
Exhaust: Muffler with USFS-approved spark arrestor
Front Tire Size: AT26 x 9R -12 Maxxis tubeless
Rear Tire Size: AT26 x 9R -12 Maxxis tubeless
Front suspension / wheel travel: MacPherson strut / 3.1 in.
Rear suspension / wheel travel: Unit swing axle, adjustable shocks / 3.1 in.
Steering: Rack and pinion
Brakes: Four-wheel hydraulic drums, triple sealed
Fuel capacity: 4.1 gal.
Curb weight: 1,052 lbs.
Overall length: 108.5 in.
Overall width: 52.0 in.
Overall height: 73.8 in.
Wheelbase: 70.1 in.
Ground clearance: 8.1 in.

2011 Kawasaki Vulcan 1700 Voyager

2011 Kawasaki Vulcan 1700 Voyager - USA Specifications
MSRP: $17,499 USD
Engine: Four-stroke, liquid-cooled, SOHC, four valves per cylinder, 52-degree V-twin
Displacement: 1,700cc / 103.7 cu. in.
Bore x stroke: 102 x 104mm
Compression ratio: 9.5:1
Maximum torque: 108 lb-ft @ 2,750 rpm
Cooling: Liquid, plus cooling fins
Induction: Digital fuel injection, dual 42mm throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed with overdrive
Final drive: Belt
Frame: Steel, double-cradle with box-section single-tube backbone
Rake / trail: 30 degrees / 7.0 in.
Front suspension / wheel travel: 45mm hydraulic fork / 5.5 in.
Rear suspension / wheel travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.

2012 Kawasaki KX65

2012 Kawasaki KX65 - USA Specifications/Technical Details
US MSRP Price: $3,549.00 USD

Engine Two-stroke single

Displacement 64cc

Bore x Stroke 44.5 x 41.6mm

Cooling System Liquid

Carburetion Mikuni VM24SS

Induction Four-petal reed valve

Compression ratio 8.4:1

Ignition Digital CDI

Transmission Six-speed

Final drive Chain

2011 Kawasaki KLX 110L

2011 Kawasaki KLX 110L - USA Specifications
MSRP: $2,299 USD
ENGINE
Four-stroke, SOHC, two-valve single
Displacement: 111cc
Bore x Stroke: 53.0 x 50.6mm
Compression ratio: 9.5: 1
Cooling System: Air
Carburetion: Mikuni PB18
Ignition: CDI
Transmission: Four-speed
Final drive: Chain
Frame Type: Backbone frame, high-tensile steel
Rake/Trail: 24.2 degrees / 1.9 in.

2011 Kawasaki Vulcan 1700 Vaquero

2011 Kawasaki Vulcan 1700 Vaquero - USA Specifications
MSRP: $16,499 USD

Engine: Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin
Displacement: 1,700cc / 103.7ci
Bore x Stroke: 102 x 104mm
Compression ratio: 9.5:1
Maximum Torque: 108 lb-ft @ 2,750 rpm
Cooling System: Liquid, plus cooling fins
Ignition: TCBI with Digital Advance
Induction: Digital fuel injection, dual 42mm throttle bodies
Transmission: 6-speed with overdrive and positive neutral finder
Frame Type: Steel, double-cradle with box-section single-tube backbone
Rake/Trail: 30° / 7.0 in.
Front Suspension / wheel travel: 45mm hydraulic fork / 5.5 in.
Rear Suspension / wheel travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1 in.

2011 Kawasaki Versys

2011 Kawasaki Versys - USA Specifications
MSRP: $7,699 USD
Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder parallel twin
Displacement: 649cc
Bore x stroke: 83.0 x 60.0mm
Compression ratio: 10.6:1
Cooling: Liquid
Fuel system: Digital fuel injection with two 38mm Keihin throttle bodies
Ignition: TCBI with electronic advance
Transmission: Six-speed
Final drive: O-Ring chain
Frame: Semi-double cradle, high-tensile steel
Rake / trail: 25 degrees / 4.3 in.
Wheelbase: 55.7 in.

2012 Kawasaki KX85

2012 Kawasaki KX85 - USA Specifications/Technical Details
US MSRP Price: $4,149.00 USD

Engine Two-stroke single with KIPS®

Displacement 99cc

Bore x Stroke 52.5 x 45.8mm

Cooling System Liquid

Carburetion Keihin PWK28

Induction Two-petal reed valve

Compression ratio 9.6:1 (low speed) – 8.8:1 (high speed)

Ignition Digital CDI

Transmission Six-speed

Final drive Chain

2010 Kawasaki Ninja 250R

2010 Kawasaki Ninja 250R - USA Specifications
MSRP $4,299 USD

Engine: Four-stroke, liquid-cooled, DOHC, parallel twin
Displacement: 249cc
Bore x stroke: 62.0 x 41.2mm
Compression ratio: 11.6:1
Cooling: Liquid
Carburetion: Keihin CVK30 x 2
Ignition: Digital
Transmission: Six-speed
Final drive: O-ring chain
Frame: Semi-double cradle, high-tensile steel
Wheelbase: 55.1 in.

2011 Kawasaki Teryx 750 FI 4x4

2011 Kawasaki Teryx 750 FI 4x4 - Specifications
American MSRP $11,299 USD
Canadian MSRP $14,499 CDN
Engine: Liquid-cooled, 90-degree, four-stroke V-twin
Valve System: SOHC, four valves per cylinder
Displacement: 749cc
Starting System: Electric
Bore x stroke: 85 x 66mm
Compression Ratio: 8.8: 1
Fuel System: 2 x Mikuni 34 mm throttle bodies
Ignition: Digital DC-CDI

2011 Kawasaki Mule 610 4x4

2011 Kawasaki Mule 610 4x4 - Specifications
American MSRP $7,499 USD
Canadian MSRP $9,449 CDN

Engine: Four-stroke, air-cooled single
Displacement: 401cc
Bore x Stroke: 82 x 76mm
Compression ratio: 8.6: 1
Carburetor: Nikki 6C1026
Air filter: Snorkel-type with two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Magneto and transistor
Electrical: 12V DC, 14 amp-hour battery, alternator
Transmission: Continuously variable transmission with high and low range, plus reverse
Final drive: Shaft-driven selectable four-wheel drive, dual-mode rear differential
Exhaust: Muffler with USFS-approved spark arrestor
Front Tire Size: 24x9-10 tubeless
Rear Tire Size: 24x11-10 tubeless
Front suspension / wheel travel: MacPherson strut / 3.1 in.
Rear suspension / wheel travel: Unit swing axle / 3.1 in.
Steering: Rack and pinion
Brakes: Four-wheel hydraulic drums, triple sealed
Fuel capacity: 4.1 gal.
Dry weight: 1,010 lbs.
Overall length: 108.8 in.
Overall width: 52.6 in.
Overall height: 70.9 in.
Wheelbase: 70.0 in.
Ground clearance: 6.7 in.

2011 Kawasaki Ninja 650R

2011 Kawasaki Ninja 650R - USA Specifications
MSRP: $7,199 USD
Engine: Four-stroke, liquid-cooled, DOHC, four-valve, parallel twin
Displacement: 649cc
Bore x stroke: 83.0 x 60.0mm
Compression ratio: 11.3:1
Cooling: Liquid
Fuel injection: Digital fuel injection with two 38mm Keihin throttle bodies
Ignition: TCBI with electronic advance
Transmission: Six-speed
Final drive: O-ring chain
Frame: Semi-double cradle, high-tensile steel
Rake / trail: 25 degrees / 4.2 in.
Wheelbase: 55.5 in.

2012 Kawasaki Ninja 1000

2012 Kawasaki Ninja 1000 - USA Specifications/Technical Details
US MSRP Price: $11,199.00 USD

Engine Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four

Displacement 1,043cc

Bore x Stroke 77.0 x 56.0 mm

Compression Ratio 11.8:1

Fuel System DFI® with four 38mm Keihin throttle bodies, oval sub-throttles

Ignition TCBI with digital advance

Transmission Six-speed

Final Drive X-ring Chain

2011 Kawasaki KLX 110

2011 Kawasaki KLX 110 - USA Specifications
MSRP: $2,149 USD
ENGINE
Four-stroke, SOHC, two-valve single
Displacement: 111cc
Bore x Stroke: 53.0 x 50.6mm
Compression ratio: 9.5: 1
Cooling System: Air
Carburetion: Mikuni PB18
Ignition: CDI
Transmission: Four-speed with automatic clutch
Final drive: Chain
Frame Type: Backbone frame, high-tensile steel
Rake/Trail: 24.8 degrees / 2.0 in.

2010 Kawasaki Ninja 650R

2010 Kawasaki Ninja 650R - USA Specifications
MSRP $7,099 USD

Engine: Four-stroke, liquid-cooled, DOHC, four-valve per cylinder, parallel twin
Displacement: 649cc
Bore x stroke: 83.0 x 60.0mm
Compression ratio: 11.3:1
Cooling: Liquid
Fuel injection: Digital fuel injection with two 38mm Keihin throttle bodies
Ignition: Digital CDI
Transmission: Six-speed
Final drive: O-ring chain
Frame: Semi-double cradle, high-tensile steel
Rake / trail: 25 degrees / 4.2 in.
Wheelbase: 55.5 in.

2010 Kawasaki 1700 Nomad

2010 Kawasaki 1700 Nomad - USA Specifications
MSRP $15,199 USD

Engine Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin

Displacement 1,700cc / 103.7ci

Ignition TCBI with Digital Advance

Bore x stroke 102 x 104mm

Compression ratio 9.5:1

Maximum Torque 108 lb-ft @ 2,750rpm

Cooling Liquid, plus cooling fins

Ignition Digital fuel injection, dual 42mm throttle bodies

Transmission Six-speed with overdrive

Frame Steel, double-cradle with box-section single-tube backbone

Rake / trail 30° / 7.0 in.

2011 Kawasaki Bayou 250

2011 Kawasaki Bayou 250 - Specifications
American MSRP $3,599 US

 Engine: Air-cooled, four-stroke, single cylinder
Displacement: 228cc
Bore x Stroke: 69.0 x 61.0mm
Compression ratio: 8.9: 1
Carburetion: Single 24mm Mikuni VM24SS
Ignition: Solid state with electronic ignition backup
Transmission: Five-speed-plus reverse with automatic clutch
Final drive: Shaft
Frame Type: Double cradle, steel
Suspension front / wheel travel: Single A-arm, independent / 4.5 in.

2010 Kawasaki Z1000

2010 Kawasaki Z1000 - USA Specifications
MSRP $10,499 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 1043cc
Bore x Stroke: 77.0 x 56.0mm
Compression Ratio: 11.8:1
Fuel Injection: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles
Ignition: TCBI with digital advance
Transmission: Six-speed
Final Drive: X-ring chain
Rake / Trail: 24.5 degrees / 4.1 in.
Frame Type: Aluminum Backbone
Front Tire: 120/70 ZR17
Rear Tire: 190/50 ZR17
Wheelbase: 56.7 in.

2011 Kawasaki Ninja 400R

2011 Kawasaki Ninja 400R - Canada Specifications
MSRP: $7,499 CDN

ENGINE
Type Liquid-cooled, 4-stroke Parallel Twin
Displacement 399 cc
Bore and Stroke 68.4 x 54.3 mm
Compression Ratio 11.0:1
Valve System DOHC, 8 valves
Fuel System Fuel injection: ø34 mm x 2 (Keihin)
Ignition Digital
Starting Electric
Lubrication Forced lubrication, semi-dry sump

2012 Kawasaki Z1000

2012 Kawasaki Z1000 - USA Specifications/Technical Details
US MSRP Price: $10,799.00 USD

Engine Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four

Displacement 1043 cc

Bore x Stroke 77.0 x 56.0mm

Compression Ratio 11.8:1

Fuel System DFI® with four 38mm Keihin throttle bodies, oval sub-throttles

Ignition TCBI Digital Advance

2011 Kawasaki KLX 140L

2011 Kawasaki KLX 140L - USA Specifications
MSRP: $3,199 USD
ENGINE
Engine: Four-stroke, SOHC, two-valve single
Displacement: 111cc
Bore x Stroke: 53.0 x 50.6mm
Compression ratio: 9.5: 1
Cooling System: Air
Carburetion: Mikuni PB18
Ignition: CDI
Transmission: Four-speed
Final drive: Chain
Frame Type: Backbone frame, high-tensile steel
Rake/Trail: 24.2 degrees / 1.9 in.

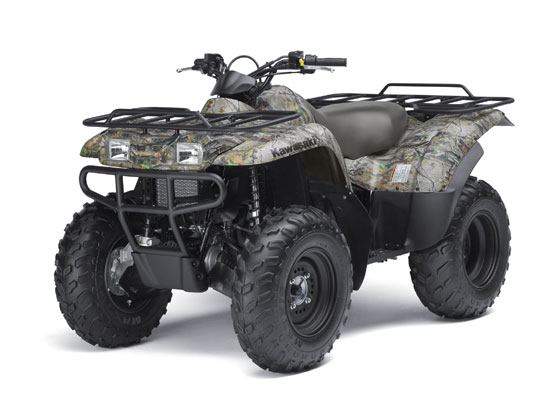

2011 Kawasaki Prairie 360 4x4 Camo

2011 Kawasaki Prairie 360 4x4 Camo - Specifications
American MSRP $6,499 US

Engine: Air-cooled, SOHC, four-stroke, single cylinder
Displacement: 362cc
Bore x Stroke: 80.0 x 72.0mm
Compression ratio: 8.3: 1
Carburetion: Keihin CVK34
Starting System: Electric with recoil backup
Transmission: Continuously variable transmission with Kawasaki Engine Brake Control, high and low range, plus reverse
Final drive: Selectable four-wheel drive with Variable Front Differential Control, shaft
Frame type: Double cradle steel

2011 Kawasaki KLX 140

2011 Kawasaki KLX 140 - USA Specifications
MSRP: $2,899 USD
ENGINE
Four-stroke, SOHC, two-valve single
Displacement: 144cc
Bore x Stroke: 58.0 x 54.4mm
Cooling System: Air
Carburetion: Keihin PB20
Compression ratio: 9.5: 1
Ignition: CDI
Transmission: Five-speed with wet multi-disc manual clutch
Final drive: Chain
Frame Type: High-Tensile steel, box-section perimeter
Rake/Trail: 27 degrees / 3.3 in.

2011 Kawasaki Z1000

2011 Kawasaki Z1000 - USA Specifications
MSRP: $10,599 USD
Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 1,043cc
Bore x stroke: 77.0 x 56.0mm
Compression ratio: 11.8:1
Fuel injection: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles
Ignition: TCBI with digital advance
Transmission: Six-speed
Final drive: X-ring chain
Rake / trail: 24.5 degrees / 4.1 in.
Frame type: Aluminum Backbone
Front tire: 120/70 ZR17
Rear tire: 190/50 ZR17
Wheelbase: 56.7 in.

2012 Kawasaki Z750R

2012 Kawasaki Z750R - UK/European Specifications/Technical Details
UK/EU MSRP Price: See UK/European Kawasaki Dealer for pricing.

Engine

Fuel system
Fuel injection: ø32 mm x 4 (Keihin) with oval sub-throttles

Ignition
Digital

Starting
Electric

Lubrication
Forced lubrication, wet sump

Engine type
Liquid-cooled, 4-stroke In-Line Four

2010 Kawasaki Concours 14

2010 Kawasaki Concours 14 - USA Specifications
MSRP $14,599 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four with VVT
Displacement: 1,352cc
Bore x stroke: 84.0 x 61.0mm
Maximum torque: 102.0 lb-ft @ 6,200 rpm
Compression ratio: 10.7:1
Fuel Injection: Digital Fuel Injection w/ 40mm throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed
Final drive: Tetra-Lever shaft drive
Rake / trail: 26.1 degrees / 4.4 in.
Front tire: 120/70 ZR-17

2011 Kawasaki KX 65

2011 Kawasaki KX 65 - USA Specifications
MSRP: $3,499 USD
ENGINE
Two-stroke single
Displacement: 64.7cc
Bore x Stroke: 44.5 x 41.6mm
Cooling System: Liquid
Carburetion: Mikuni VM24SS
Induction: Four-petal reed valve
Compression ratio: 8.4: 1
Ignition: Digital CDI
Transmission: Six-speed
Final drive: Chain
Frame Type: Semi-double-cradle, high-tensile steel
Rake/Trail: 27 degrees / 2.4 in.
Front suspension / wheel travel: 33mm leading axle conventional fork with four-way rebound damping / 8.3 in.

2011 Kawasaki Ninja 1000

2011 Kawasaki Ninja 1000 - USA Specifications
MSRP: $10,999 USD
Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 1,043cc
Bore x stroke: 77.0 x 56.0mm
Compression ratio: 11.8:1
Fuel injection: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles
Ignition: TCBI with digital advance
Transmission: Six-speed
Final drive: X-ring chain
Rake / trail: 24.5 degrees / 4.0 in.
Frame type: Aluminum Backbone
Front tire: 120/70 ZR17
Rear tire: 190/50 ZR17
Wheelbase: 56.9 in.

2012 Kawasaki Ninja 650

2012 Kawasaki Ninja 650 - USA Specifications/Technical Details
US MSRP Price: $7,499.00 USD

Engine Four-stroke, liquid-cooled, DOHC, four-valve, parallel twin

Displacement 649 cc

Bore x Stroke 83.0 x 60.0 mm

Compression Ratio 10.8:1

Cooling System Liquid

Fuel System Digital fuel injection with two 38mm Keihin throttle bodies

Ignition TCBI with electronic advance

Transmission 6-Speed

2010 Kawasaki Ninja ZX-6R

2010 Kawasaki Ninja ZX-6R - USA Specifications
MSRP $10,499 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 599cc
Bore x stroke: 67.0 x 42.5mm
Compression ratio: 13.3:1
Fuel injection: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body
Ignition: TCBI with digital advance
Transmission: Six speed
Final drive: X-ring chain
Rake / trail: 24 deg / 4.1 in.
Frame type: Aluminum perimeter
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Wheelbase: 55.1 in.

2011 Kawasaki Mule 4010 Trans 4x4 Diesel

2011 Kawasaki Mule 4010 Trans 4x4 Diesel - Specifications
American MSRP $12,199 USD
Canadian MSRP $NA CDN
Engine: Four-stroke, three-cylinder, liquid-cooled, OHV, diesel
Displacement: 953cc
Bore x Stroke: 72.0 x 78.0mm
Compression Ratio: 24.8: 1
Air Filter: Snorkel-type with cyclone-type two-stage dry replaceable element
Oil Filter: Automotive-type spin-on canister
Ignition: Compression with glow plugs for starting
Electrical: 12V DC, 52 amp-hour battery, 40 amp alternator

2011 Kawasaki Prairie 360 4X4

2011 Kawasaki Prairie 360 4X4 - Specifications
American MSRP $6,149 US
Canadian MSRP $NA CDN
Engine: Four-stroke, V-twin, liquid-cooled, SOHC, four-valve
Displacement: 633cc
Bore x Stroke: 80 x 63mm
Compression ratio: 9.9: 1
Carburetion: (2) Keihin CVKR-D32
Starting system: Electric
Ignition: DC-CDI
Transmission: KAPS, Dual Range with Reverse, 2WD/4WD, and Kawasaki Engine Brake Control
Final drive: 2x4 / 4x4 shaft
Frame Type: Double cradle, tubular steel
Front suspension / wheel travel: Dual A-arms, two shocks with five-way preload adjustment / 6.7 in.
Rear suspension / wheel travel: Dual A-arms, two shocks with five-way preload adjustment / 7.9 in.
Front Tire Size: AT25x8-12
Rear Tire Size: AT25x10-12

2011 Kawasaki Concours 14 ABS

2011 Kawasaki Concours 14 ABS - USA Specifications
MSRP: $15,599 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four with VVT
Displacement: 1,352cc
Bore x stroke: 84.0 x 61.0mm
Maximum torque: 102.0 lb-ft @ 6,200 rpm
Compression ratio: 10.7:1
Fuel injection: Digital Fuel Injection w/ 40mm throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed
Final drive: Tetra-Lever shaft drive
Rake / trail: 26.1 degrees / 4.4 in.
Front tire: 120/70 ZR-17
Rear tire: 190/50 ZR-17

2012 Kawasaki Versys 650

2012 Kawasaki Versys 650 - USA Specifications/Technical Details
US MSRP Price: $7,899.00 USD

Engine Four-stroke, liquid-cooled, DOHC, four valves per cylinder parallel twin

Displacement 649 cc

Bore x Stroke 83.0 x 60.0 mm

Compression Ratio 10.6:1

Cooling System Liquid

Fuel System Digital fuel injection with two 38mm Keihin throttle bodies

Ignition TCBI with electronic advance

2011 Kawasaki KX 85

2011 Kawasaki KX 85 - USA Specifications
MSRP: $3,899 USD
ENGINE
Two-stroke single with KIPS®
Displacement: 84cc
Bore x Stroke: 48.5 x 45.8mm
Cooling System: Liquid
Carburetion: Keihin PWK28
Induction: Crankcase reed valve
Compression ratio: 10.0: 1 (low speed) – 9.2: 1 (high speed)
Ignition: Digital CDI
Transmission: Six-speed
Final drive: Chain
Frame Type: High-tensile steel perimeter design with subframe member
Rake/Trail: 27 degrees / 3.5 in.

2011 Kawasaki Mule 4010 Trans 4x4 Camo

2011 Kawasaki Mule 4010 Trans 4x4 Camo - Specifications
American MSRP $11,299 USD
Canadian MSRP $NA CDN
Engine: Four-stroke, liquid-cooled, overhead valve V-twin
Displacement: 617cc
Bore x Stroke: 76 x 68mm
Compression ratio: 10.3: 1
Carburetor: Digital Fuel Injection
Air filter: Snorkel-type with cyclone-type two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Digital electronic
Electrical: 12V, 18 amp-hour battery, alternator
Transmission: Continuously variable transmission (CVT) with high and low range, forward, neutral and reverse

2010 Kawasaki Vulcan 1700 Classic LT

2010 Kawasaki Vulcan 1700 Classic LT - USA Specifications
MSRP $14,199 USD

Engine: Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin
Displacement: 1,700cc / 103.7ci
Bore x Stroke: 102 x 104mm
Compression Ratio: 9.5:1
Maximum Torque: 108 lb-ft @ 2,250 rpm
Cooling: Liquid, plus cooling fins
Induction: Digital fuel injection, dual 42mm throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed with overdrive
Final drive: Belt
Frame: Steel, double-cradle with box-section single-tube backbone
Rake / Trail: 30° / 6.7 in.
Suspension, Front / Wheel Travel: 43mm hydraulic fork / 5.5 in.
Suspension, Rear / Wheel Travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping / 3.1in.

2011 Kawasaki KX 100

2011 Kawasaki KX 100 - USA Specifications
MSRP: $4,099 USD
ENGINE
Engine: Two-stroke single with KIPS®
Displacement: 99cc
Bore x Stroke: 52.5 x 45.8mm
Cooling System: Liquid
Carburetion: Keihin PWK28
Induction: Two-petal reed valve
Compression ratio: 9.6: 1 (low speed) – 8.8: 1 (high speed)
Ignition: Digital CDI
Transmission: Six-speed
Final drive: Chain

2012 Kawasaki ER-6n

2012 Kawasaki ER-6n - Canadian Specifications/Technical Details
Canada MSRP Price: See Canadian Kawasaki Dealer for pricing.

ENGINE
Type 4-stroke, Parallel Twin
Displacement 649cc
Bore and Stroke 83.0 x 60.0 mm
Cooling Liquid
Compression Ratio 10.8:1
Valve System DOHC, 8 valves
Fuel System Digital fuel injection with two 38 mm Keihin throttle bodies
Ignition Digital
Lubrication Forced lubrication (semi-dry sump)

2010 Kawasaki Ninja ZX-14

2010 Kawasaki Ninja ZX-14 - USA Specifications
MSRP $13,399 to $13,699 USD

Engine: Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four
Displacement: 1,352cc
Bore x stroke: 84.0 x 61.0mm
Compression ratio: 12.0:1
Fuel system: DFI® with four 44mm Mikuni throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six speed
Final drive: X-Ring chain
Rake / trail: 23 degrees / 3.7 in.
Front Tire: 120/70 ZR17
Rear Tire: 190/50 ZR17
Wheelbase: 57.5 in.

2010 Kawasaki Vulcan 1700 Classic

2010 Kawasaki Vulcan 1700 Classic - USA Specifications
MSRP $12,999 USD

Engine Four-stroke, liquid-cooled, SOHC, four valve per cylinder, 52° V-twin

Displacement 1,700cc / 103.7ci

Bore x stroke 102 x 104mm

Compression ratio 9.5:1

Maximum Torque 108 lb-ft @ 2250

Cooling Liquid, plus cooling fins

Induction Digital fuel injection, dual 42mm throttle bodies

2011 Kawasaki Mule 4010 Trans 4x4



2011 Kawasaki Mule 4010 Trans 4x4 - Specifications
American MSRP $10,899 USD
Canadian MSRP $13,499 CDN
Engine: Four-stroke, liquid-cooled, overhead valve V-twin
Displacement: 617cc
Bore x Stroke: 76 x 68mm
Compression ratio: 10.3: 1
Carburetor: Digital Fuel Injection
Air filter: Snorkel-type with cyclone-type two-stage dry replaceable element
Oil filter: Automotive-type spin-on canister
Ignition: Digital electronic
Electrical: 12V, 18 amp-hour battery, alternator
Transmission: Continuously variable transmission (CVT) with high and low range, forward, neutral and reverse
Final drive: Shaft, selectable four-wheel drive with dual-mode rear differential
Exhaust: Muffler with USFS-approved spark arrestor
Tires: 23x11-10 tubeless
Front suspension / wheelbase: Independent, MacPherson strut / 3.9 in.
Rear suspension / wheelbase: Semi-independent, DeDion axle with leaf springs and shocks / 2.8 in.
Steering: Electric power assisted rack-and-pinion
Brakes: Four-wheel hydraulic drums, sealed
Fuel capacity: 6.2 gal.
Curb weight: 1,565 lbs.
Overall length: 130.1 in.
Overall height: 75.8 in.
Overall width: 58.5 in.
Wheelbase: 85.2 in.
Ground clearance: 7.1 in.

2010 Kawasaki Vulcan 1700 Voyager

2010 Kawasaki Vulcan 1700 Voyager - Canada Specifications
MSRP: $21,049 CDN
Type Liquid-cooled, 4-stroke V-Twin
Displacement 1,700 cm3
Bore and Stroke 102 x 104 mm
Compression ratio 9.5:1
Valve system SOHC, 8 valves
Fuel system Fuel injection:?42 mm x 2
Ignition Digital
Starting Electric
Lubrication Forced lubrication, semi-dry sump

2011 Kawasaki Brute Force 650 4x4


2011 Kawasaki Brute Force 650 4x4 - Specifications
American MSRP $7,599 US
Canadian MSRP $8,849 CDN
Engine: Four-stroke, V-twin, liquid-cooled, SOHC, four-valve
Displacement: 633cc
Starting system: Electric with recoil back up
Bore x Stroke: 80 x 63mm
Compression ratio: 9.9: 1
Carburetion: (2) Keihin CVKR-D32
Ignition: DC-CDI
Transmission: Dual-range CVT plus reverse with Kawasaki Engine Brake Control
Final drive: 2x4 / 4x4 shaft
Frame Type: Double cradle, tubular steel
Front suspension / wheel travel: MacPherson / 6.7 in.
Rear suspension / wheel travel: Aluminum swingarm and single shock / 7.2 in.
Front Tire Size: AT25x8-12
Rear Tire Size: AT25x10-12
Front brakes: (2) Dual-piston disc
Rear Brakes: Sealed, oil-bathed, multi-disc
Overall length: 86.0 in.
Overall width: 47.7 in.
Wheelbase: 50.9 in.

2011 Kawasaki KFX90

2011 Kawasaki KFX90 - Specifications
American MSRP $2,699 US
Canadian MSRP $3,499 CDN
Engine: Air-cooled, four-stroke, single cylinder
Displacement: 89cc
Bore x Stroke: 47.0 x 51.8mm
Compression ratio: 10.0: 1
Carburetion: Mikuni PTE 16
Ignition: Solid state CDI
Transmission: Continuously Variable Automatic
Final drive: Chain
Frame Type: Double cradle, steel

2011 Kawasaki KFX450R

2011 Kawasaki KFX450R - Specifications
American MSRP $8,099 US
 Engine: Liquid-cooled, four-stroke, DOHC, four-valve single
Displacement: 449cc
Bore x Stroke: 96 x 62.1mm
Fuel System: 32-bit digital, with 42mm Keihin throttle body
Ignition: Digital AC-CDI
Starting System: Electric
Transmission: Five-speed with reverse
Final drive: Two-wheel drive, chain
Frame type: Aluminum double cradle, racing type
Front suspension / wheel travel: Dual A-arms, coil-over shocks / 8.5 in

2011 Kawasaki Ninja ZX-14

2011 Kawasaki Ninja ZX-14 - USA Specifications
MSRP: $13,599 USD
Engine: Four-stroke, liquid-cooled, DOHC, four valve per cylinder, inline-four
Displacement: 1,352cc
Bore x stroke: 84.0 x 61.0mm
Compression ratio: 12.0:1
Fuel system: DFI® with four 44mm Mikuni throttle bodies
Ignition: TCBI with Digital Advance
Transmission: Six-speed
Final drive: X-Ring chain
Rake / trail: 23 degrees / 3.7 in.
Front tire: 120/70 ZR17
Rear tire: 190/50 ZR17
Wheelbase: 57.5 in.
